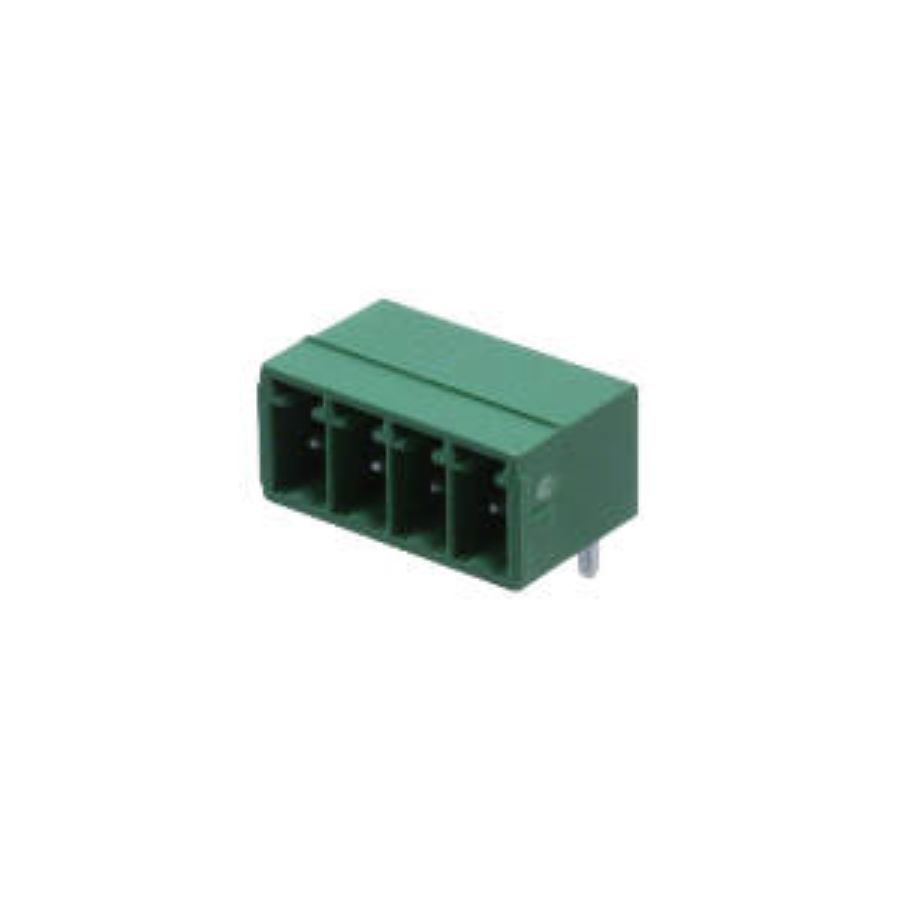

1844236
Manufacturer:
Phoenix Contact
Mfr.Part #:
1844236
Datasheet:
Description:
Terminal Blocks Through Hole 4 3.5 mm 8 A 300 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| RoHS | Compliant |
| Voltage | 160 V |
| Contact Plating | Tin |
| Pitch | 3.5 mm |
| Current Rating | 8 A |
| Flammability Rating | UL 94 V-0 |
| Orientation | 90° Angle (Right) |
| Color | Green |
| Gender | Male |
| Mounting Style | Through Hole, Solder |
| lead free status | Lead Free |
| rohs status | Compliant |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Number of Positions Per Level | 4 |
| Number of Levels | 1 |
| size width | 8.00 mm |
| size length | 15.4 mm |
| size height | 11.1 mm |
| voltage rating dc | 0.64 V (640 mV) |
| Housing Color | Green |
| pin pitch | 3.50 mm |
| Connection Method | Plug |
| Current Rating (IEC) | 8 A |
| Voltage Rating (IEC) | 160 V |
Stock: 94
Distributors
pcbx
pcbxUnit Price$0.86515
Ext.Price$0.86515
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.86515 | $0.86515 |
| 10 | $0.69859 | $6.98590 |
| 25 | $0.64593 | $16.14825 |
| 50 | $0.59724 | $29.86200 |
| 100 | $0.55222 | $55.22200 |
| 300 | $0.51059 | $153.17700 |
| 500 | $0.47210 | $236.05000 |
| 1000 | $0.44678 | $446.78000 |
